记得论坛有人问，字节值如何转换成ASCII码，周末写了个小东西，主要实现转换字节值为基本ASCII码。

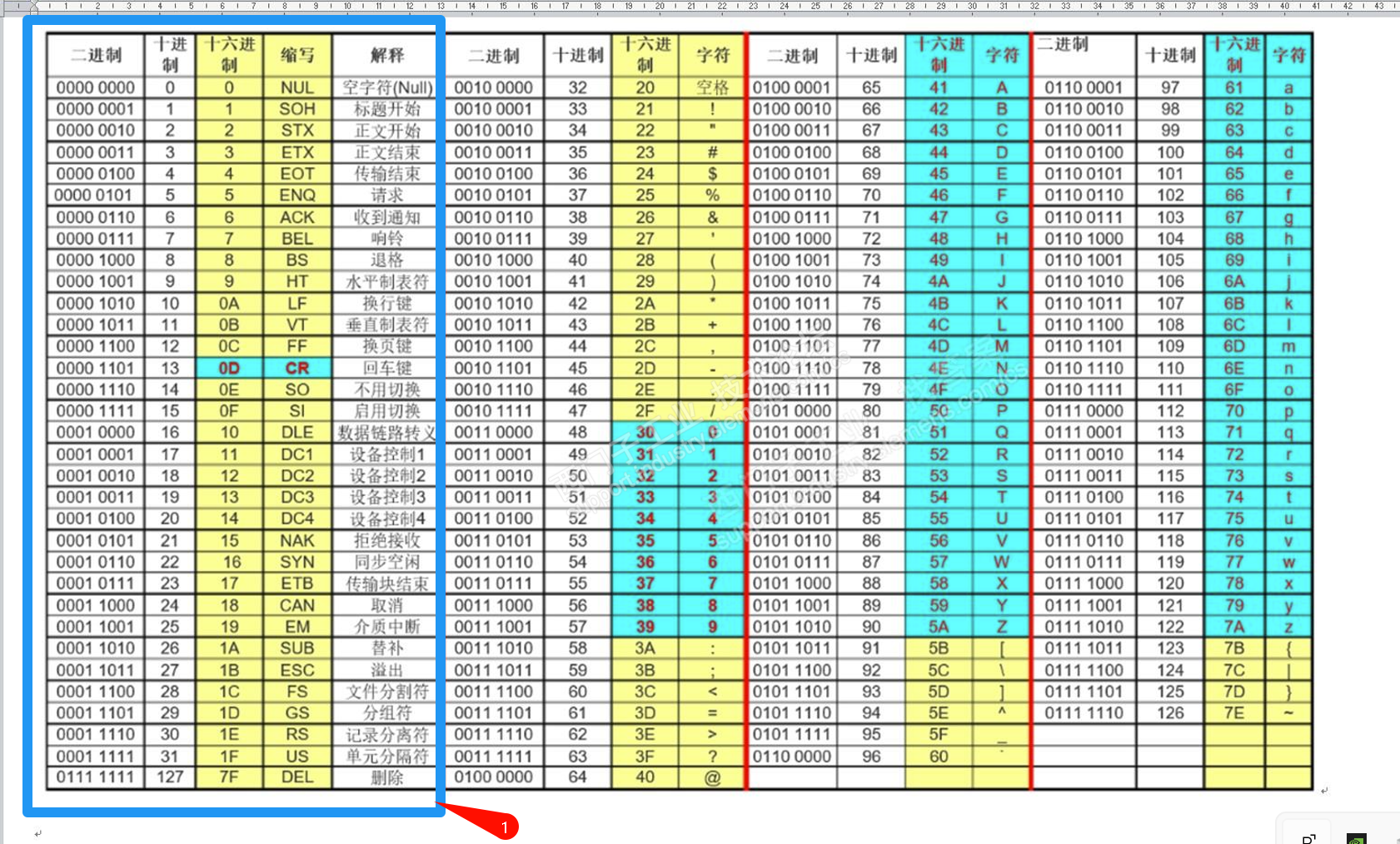

基本ASCII码见下图

可以划分为两大类，蓝色框内的可称为“控制符号”，余下的可称为“可打印符号”。

最方便的实现，便是查表法。

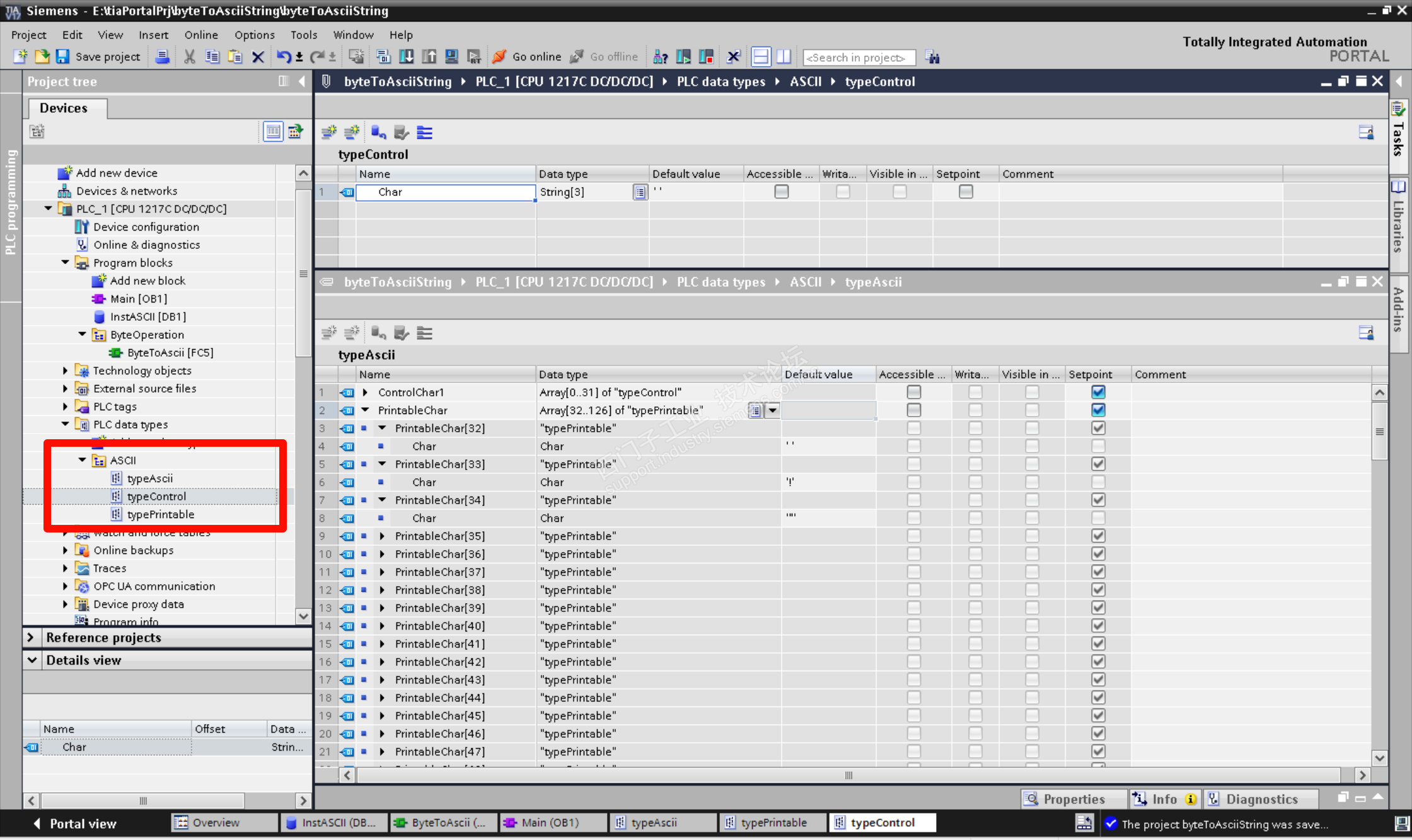

首先，新建对应的PLC 数据类型，typeControl,typePrintable,typeAscii。

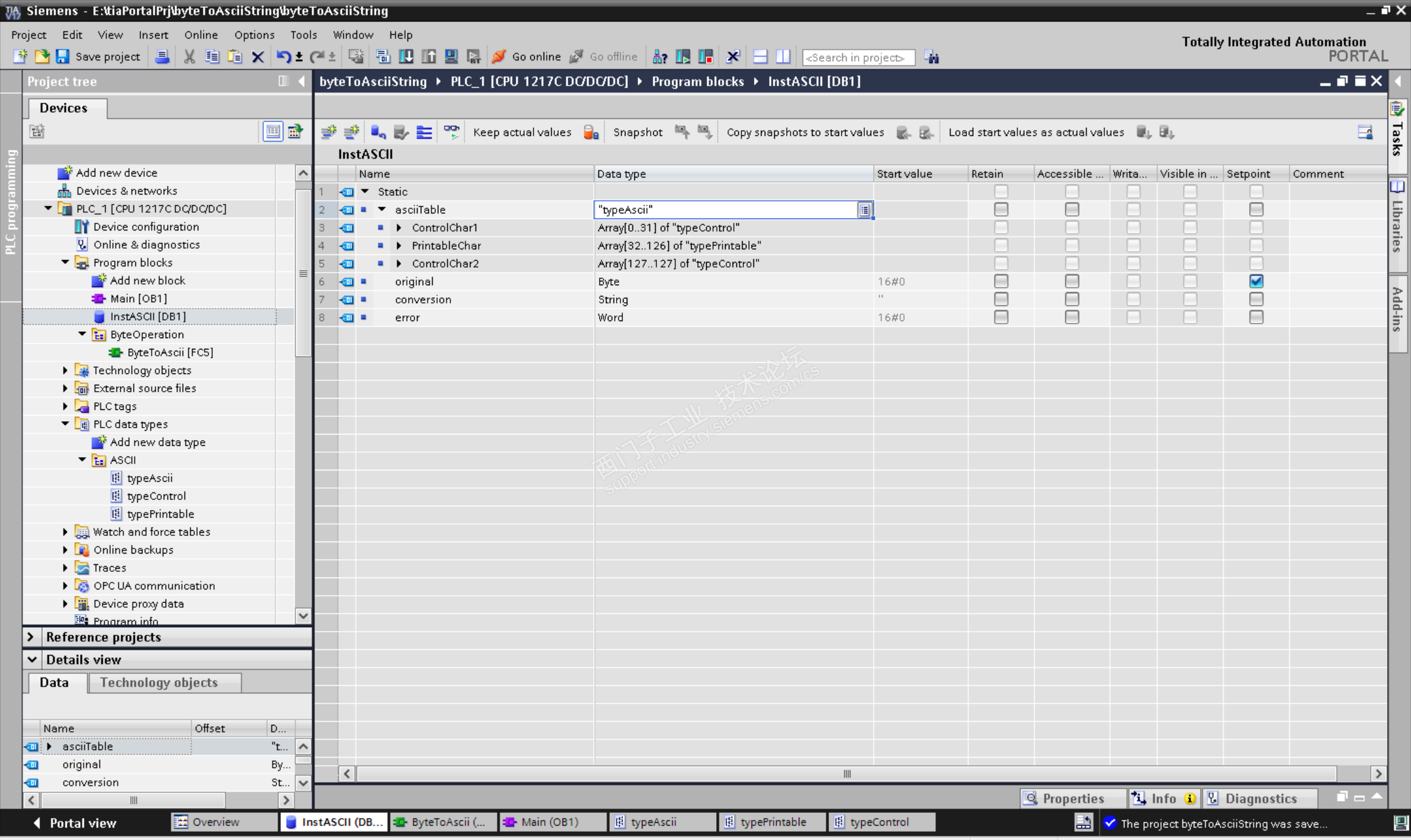

其次，使用PLC数据类型在DB中构建ASCII表

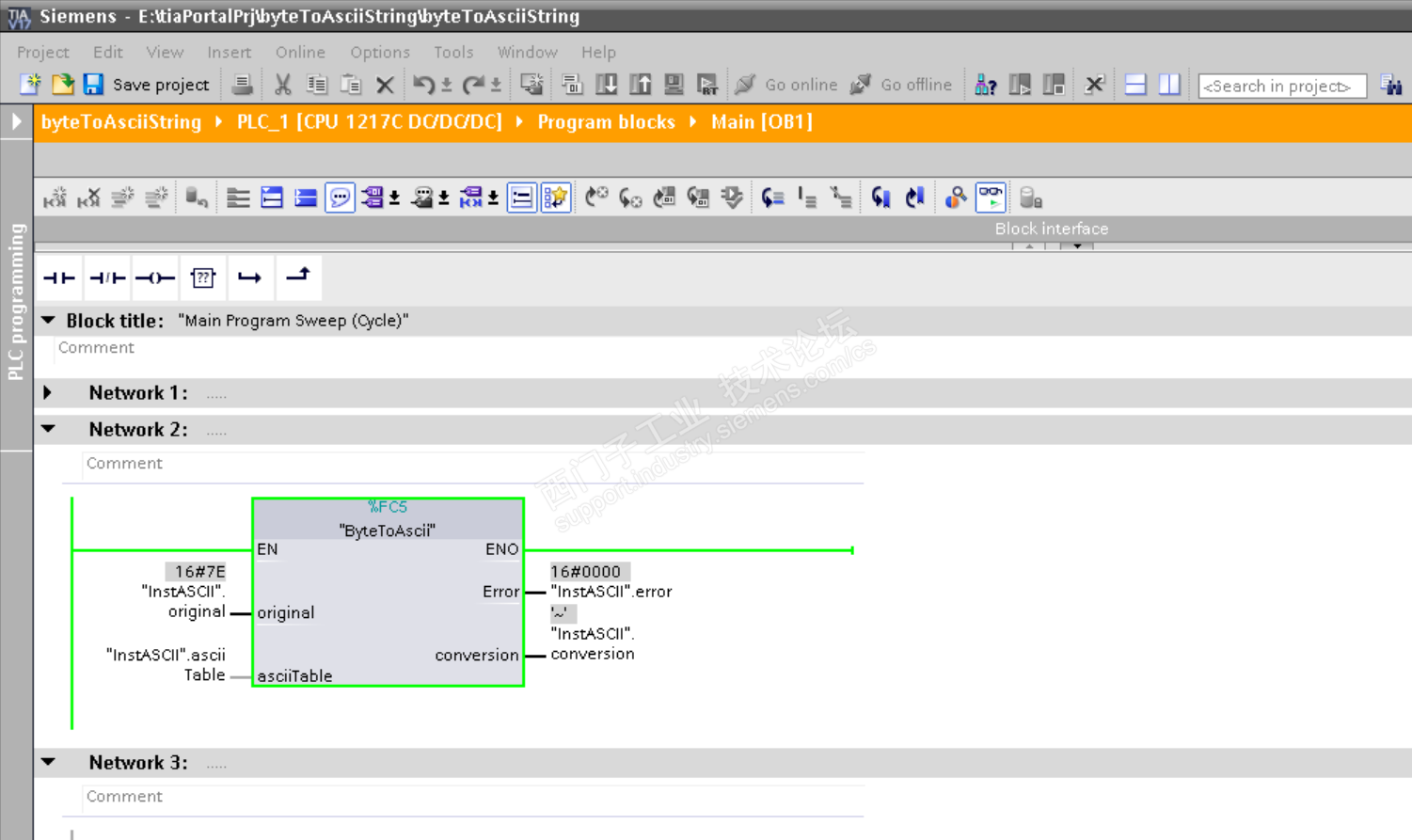

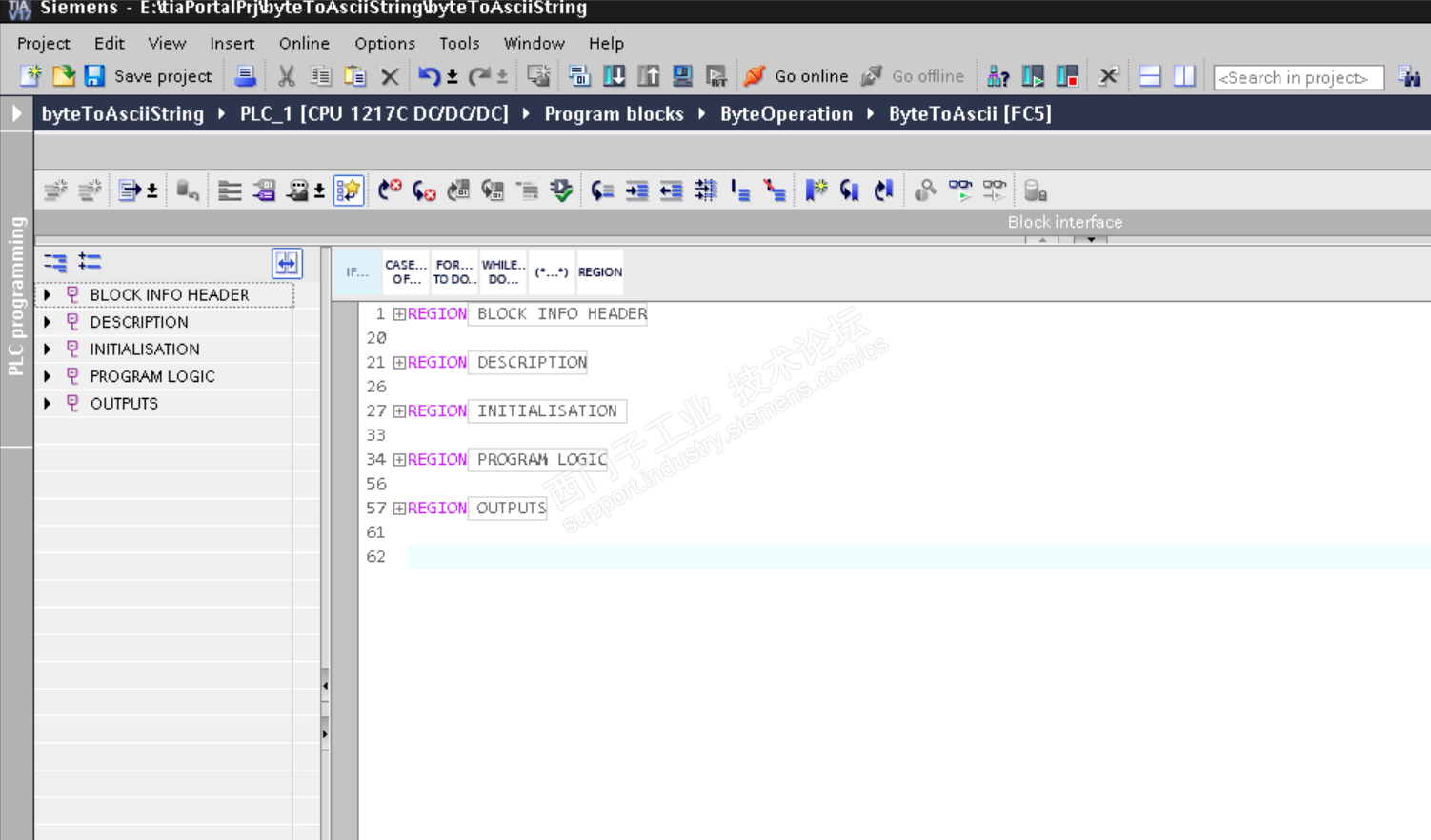

最后，编写功能FC"ByteToAscii"，并调用。

注意事项：

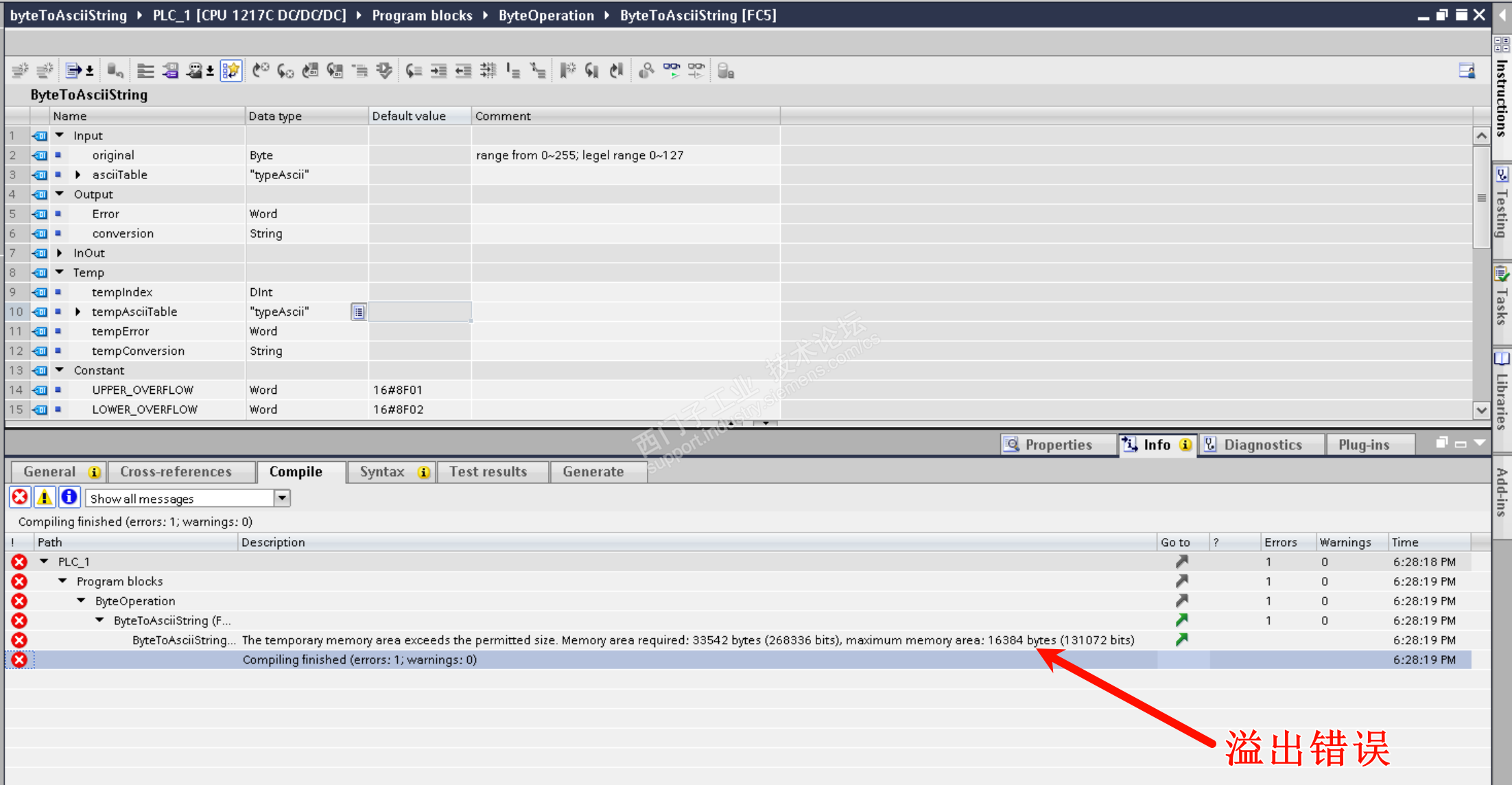

在使用元素类型为string的数组时，如果能指定string长度时则尽量指定其长度，避免如下图中的错误

结语：

程序仓促而就，有不妥之处，欢迎指正。

源代码：

TYPE "typeControl"

VERSION : 0.1

   STRUCT

      "Char" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : String[3] := ' ';

   END_STRUCT;

END_TYPE

TYPE "typePrintable"

VERSION : 0.1

   STRUCT

      "Char" { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Char := ' ';

   END_STRUCT;

END_TYPE

TYPE "typeAscii"

VERSION : 0.1

   STRUCT

      ControlChar1 { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[0..31] of "typeControl" := [('NUL'), ('SOH'), ('STH'), ('ETX'), ('EOT'), ('END'), ('ACK'), ('BEL'), ('BS'), ('HT'), ('LF'), ('VT'), ('FF'), ('CR'), ('SO'), ('SI'), ('DLE'), ('DC1'), ('DC2'), ('DC3'), ('DC4'), ('NAK'), ('SYN'), ('ETB'), ('CAN'), ('EM'), ('SUB'), ('ESC'), ('FS'), ('GS'), ('RS'), ('US')];

      PrintableChar { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[32..126] of "typePrintable" := [(' '), ('!'), ('"'), ('#'), ('$$'), ('%'), ('&'), ('$''), ('('), (')'), ('*'), ('+'), (','), ('-'), ('.'), ('/'), ('0'), ('1'), ('2'), ('3'), ('4'), ('5'), ('6'), ('7'), ('8'), ('9'), (':'), (';'), ('<'), ('='), ('>'), ('?'), ('@'), ('A'), ('B'), ('C'), ('D'), ('E'), ('F'), ('G'), ('H'), ('I'), ('J'), ('K'), ('L'), ('M'), ('N'), ('O'), ('P'), ('Q'), ('R'), ('S'), ('T'), ('U'), ('V'), ('W'), ('X'), ('Y'), ('Z'), ('['), ('\'), (']'), ('^'), ('_'), ('`'), ('a'), ('b'), ('c'), ('d'), ('e'), ('f'), ('g'), ('h'), ('i'), ('j'), ('k'), ('l'), ('m'), ('n'), ('o'), ('p'), ('q'), ('r'), ('s'), ('t'), ('u'), ('v'), ('w'), ('r'), ('s'), ('t'), ('{'), ('|'), ('}'), ('~')];

      ControlChar2 { ExternalAccessible := 'False'; ExternalVisible := 'False'; ExternalWritable := 'False'} : Array[127..127] of "typeControl" := [('DEL')];

   END_STRUCT;

END_TYPE

FUNCTION "ByteToAscii" : Void

{ S7_Optimized_Access := 'TRUE' }

VERSION : 0.1

   VAR_INPUT

      original : Byte;   // range from 0~255; legel range 0~127

      asciiTable : "typeAscii";

   END_VAR

   VAR_OUTPUT

      Error : Word;

      conversion : String;

   END_VAR

   VAR_TEMP

      tempIndex : DInt;

      tempAsciiTable : "typeAscii";

      tempError : Word;

      tempConversion : String;

   END_VAR

   VAR CONSTANT

      UPPER_OVERFLOW : Word := 16#8F01;

      LOWER_OVERFLOW : Word := 16#8F02;

      NO_ERROR : Word := 16#0;

      MIN_CONTROL : DInt := 16#0;

      MAX_CONTROL : DInt := 16#7F;

      MIN_PRINTABLE : DInt := 16#20;

      MAX_PRINTABLE : DInt := 16#7E;

      US_CONTROL_CHAR : DInt := 16#1F;

      EMPTY_STRING : String;

   END_VAR

BEGIN

    REGION BLOCK INFO HEADER

      //===============================================================================

      // Razor / (c)Copyright (2024)

      //-------------------------------------------------------------------------------

      // Title:            (ByteToAsciiString)

      // Comment/Function: (convert Byte value to ASCII code string)

      // Library/Family:   (Razorlib)

      // Author:           (A&D / Razor / 646644315@qq.com)

      // Tested with:      (test system with FW version)

      // Engineering:      TIA Portal (V17 Upd7)

      // Restrictions:     (OB types, etc.)

      // Requirements:     (hardware, technological package, memory needed, etc.)

      //-------------------------------------------------------------------------------

      // Change log table:

      // Version  | Date       | Expert in charge       | Changes applied

      //----------|------------|------------------------|------------------------------

      // 01.00.00 | 2024-05-13 | (Razor)                | First released version

      //===============================================================================

    END_REGION BLOCK INFO HEADER

    REGION DESCRIPTION

    (/*

    this block convert the  value of a byte to ASCII code String

    */)

    END_REGION DESCRIPTION

    REGION INITIALISATION

      #tempAsciiTable := #asciiTable;

      #tempIndex := BYTE_TO_DINT(#original);    //get index

      #tempError := #NO_ERROR;

      #tempConversion := #EMPTY_STRING;

    END_REGION INITIALISATION

    REGION PROGRAM LOGIC

      IF #tempIndex >= #MIN_CONTROL AND #tempIndex <= #MAX_CONTROL THEN   //check illegal

        #tempError := #NO_ERROR;

      END_IF;

      IF #tempIndex > #MAX_CONTROL THEN    //check upper limit

        #tempError := #UPPER_OVERFLOW;

      END_IF;

      IF #tempIndex < #MIN_CONTROL THEN    //check lower limit

        #tempError := #LOWER_OVERFLOW;

      END_IF;

      IF #tempIndex >= #MIN_CONTROL AND #tempIndex <= #US_CONTROL_CHAR THEN    //control chars

        #tempConversion := #tempAsciiTable.ControlChar1[#tempIndex]."Char";

      END_IF;

      IF #tempIndex = #MAX_CONTROL THEN

        #tempConversion := #tempAsciiTable.ControlChar2[#tempIndex]."Char";

      END_IF;

      IF #tempIndex >= #MIN_PRINTABLE AND #tempIndex <= #MAX_PRINTABLE THEN   //printalble chars

        #tempConversion := #EMPTY_STRING;   //first clear,then transfer

        #tempConversion := #tempAsciiTable.PrintableChar[#tempIndex]."Char";

      END_IF;

    END_REGION

    REGION OUTPUTS

      #Error := #tempError;

      #conversion := #tempConversion;

    END_REGION

END_FUNCTION
